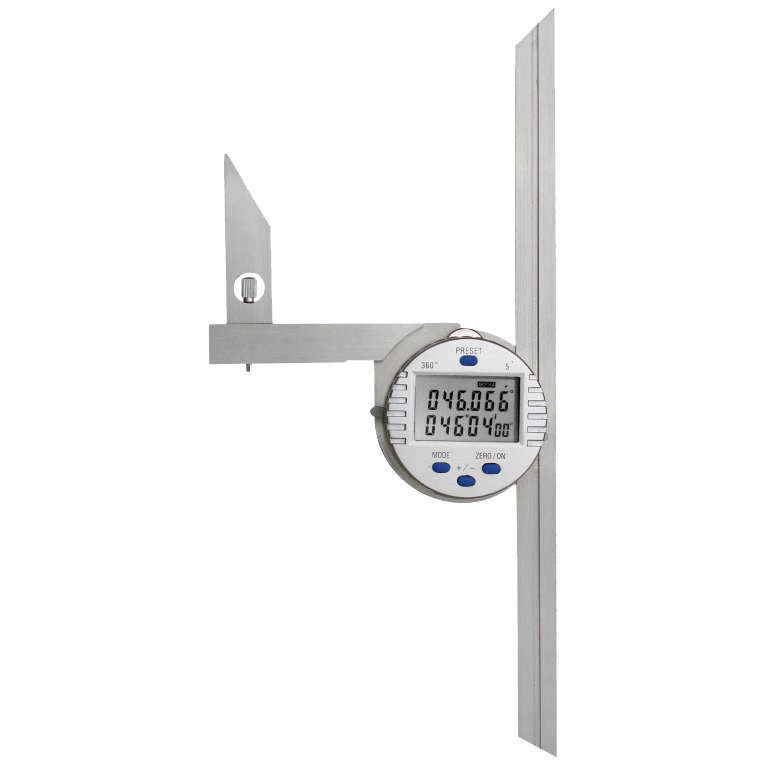

Universal Digital Protractor

MODEL #:  1454-0000

Stainless steel construction,  easy-to-read LCD, zero setting at any position of the measuring range, fine adjustment for easy setting of desired angle, locking lever to prevent accidental adjustment, blade can be locked, changeable direction.  1454-0000 Includes > 1 3V CR2032 lithium battery, 70mm, 150mm, 300 blades, calibration square, and a hard case.

1454-0000+ Hover over main image to zoom
1454-0000
  • Stainless steel construction

  • Easy-to-read LCD

  • Zero setting at any position of the measuring range

  • Fine adjustment for easy setting of desired angle

  • Locking lever to prevent accidental adjustment

  • Blade can be locked

  • Changeable direction

1454-0000 Includes > Digital protractor, 1 3V CR2032 lithium battery, 70mm, 150mm, 300 blades, calibration square, and a hard case

Accuracy:

±5'

Resolution:

30"

Power Supply:

1 3V CR2032 lithium battery (included)

Battery Life:

Approximately 1 year

Dimensions:

5.5" x 1.5" x 2.5" (139 x 38 x 63mm)

Weight:

0.740 lbs. (0.336kg)

Working Temperature:

32ºF to 104ºF (0ºC to 40ºC)

Warranty:

1 Year Warranty

Measuring Range:

0 - 360°

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Digital Protractor Instruction Manual

1454-0000 - English/French/Spanish

Other Support

How to Choose Construction Measuring Tools

Product Details

Stainless steel construction,  easy-to-read LCD, zero setting at any position of the measuring range, fine adjustment for easy setting of desired angle, locking lever to prevent accidental adjustment, blade can be locked, changeable direction.  1454-0000 Includes > 1 3V CR2032 lithium battery, 70mm, 150mm, 300 blades, calibration square, and a hard case.



1454-0000 Includes > Digital protractor, 1 3V CR2032 lithium battery, 70mm, 150mm, 300 blades, calibration square, and a hard case

Specifications

Accuracy:

±5'

Resolution:

30"

Power Supply:

1 3V CR2032 lithium battery (included)

Battery Life:

Approximately 1 year

Dimensions:

5.5" x 1.5" x 2.5" (139 x 38 x 63mm)

Weight:

0.740 lbs. (0.336kg)

Working Temperature:

32ºF to 104ºF (0ºC to 40ºC)

Warranty:

1 Year Warranty

Measuring Range:

0 - 360°

Support

Johnson Level Rapid Response Center for Repair and Service
In the U.S., email us at service@johnsonlevel.com or call 888-953-8357 M-F from 9AM-3PM CT.
In CANADA, call 800-346-6682 x347 M-F 8AM-5PM ET.

Digital Protractor Instruction Manual

1454-0000 - English/French/Spanish

Other Support

How to Choose Construction Measuring Tools
