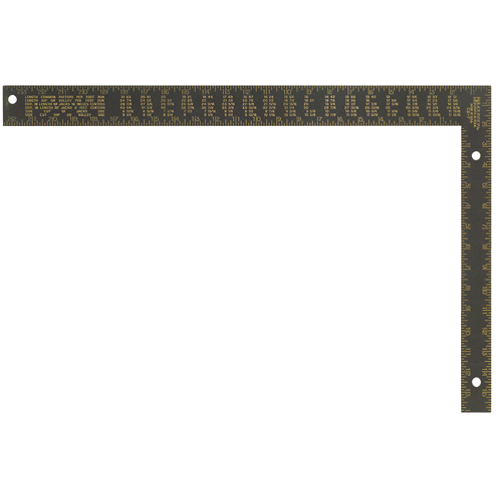

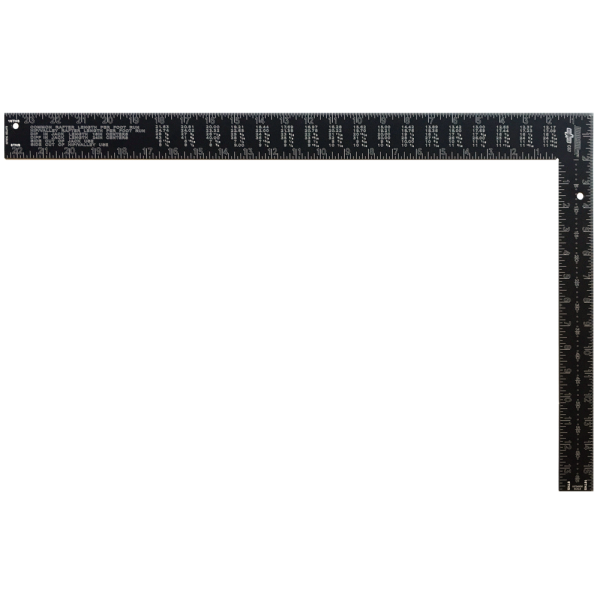

16" x 24" Big J Pro Aluminum Framing Square

MODEL #:  CS7

24" x 2" body, 16" x 1-1/2" tongue, 1/8" thick, Aluminum body will not rust, Laser etched EZ Read graduations and numbers on black anodized body, Graduations measure 1/8", 1/10", 1/12", 1/16", Includes octagon scales, rafter tables, brace tables and board foot tables.

aluminum framing square image+ Hover over main image to zoom
aluminum framing square image
  • 24" x 2" body, 16" x 1-1/2" tongue, 1/8" thick

  • Aluminum body will not rust

  • Laser etched EZ Read graduations and numbers on black anodized body

  • Graduations measure in 1/8", 1/10", 1/12", 1/16"

  • Includes octagon scales, rafter tables, brace tables and board foot tables

Warranty:

1 Year Warranty

Product Details

24" x 2" body, 16" x 1-1/2" tongue, 1/8" thick, Aluminum body will not rust, Laser etched EZ Read graduations and numbers on black anodized body, Graduations measure 1/8", 1/10", 1/12", 1/16", Includes octagon scales, rafter tables, brace tables and board foot tables.



Specifications

Warranty:

1 Year Warranty
