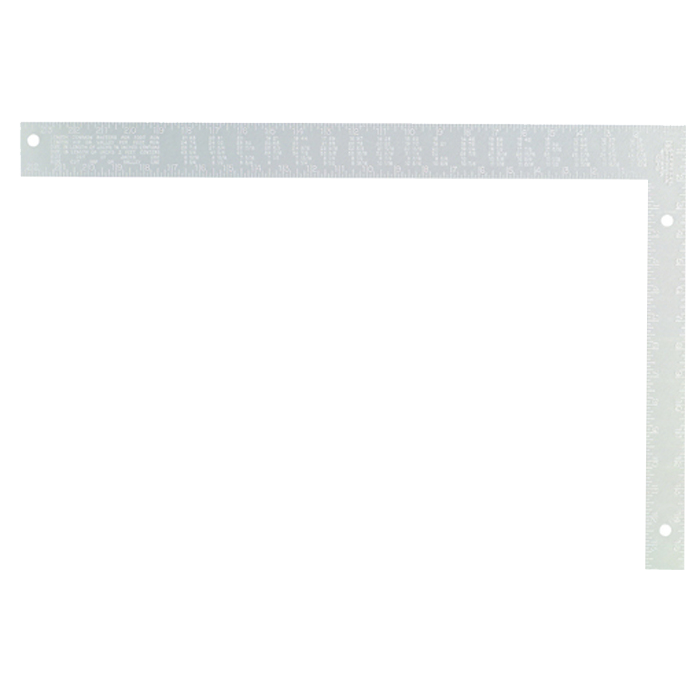

16" x 24" Aluminum Framing Square

MODEL #:  CS5
24" x 2" body, 16" x 1-1/2" tongue, 1/8" thick, Aluminum body will not rust, Permanently stamped graduations and numbers, Graduations measure in 1/8", 1/10", 1/12", 1/16", Includes octagon scales, rafter tables, brace tables and board foot tables
aluminum framing square image+ Hover over main image to zoom
aluminum framing square image
  • 24" x 2" body, 16" x 1-1/2" tongue, 1/8" thick

  • Aluminum body will not rust

  • Permanently stamped graduations and numbers

  • Graduations measure in 1/8", 1/10", 1/12", 1/16"

  • Includes octagon scales, rafter tables, brace tables and board foot tables

Warranty:

1 Year Warranty

Product Details

24" x 2" body, 16" x 1-1/2" tongue, 1/8" thick, Aluminum body will not rust, Permanently stamped graduations and numbers, Graduations measure in 1/8", 1/10", 1/12", 1/16", Includes octagon scales, rafter tables, brace tables and board foot tables


Specifications

Warranty:

1 Year Warranty
