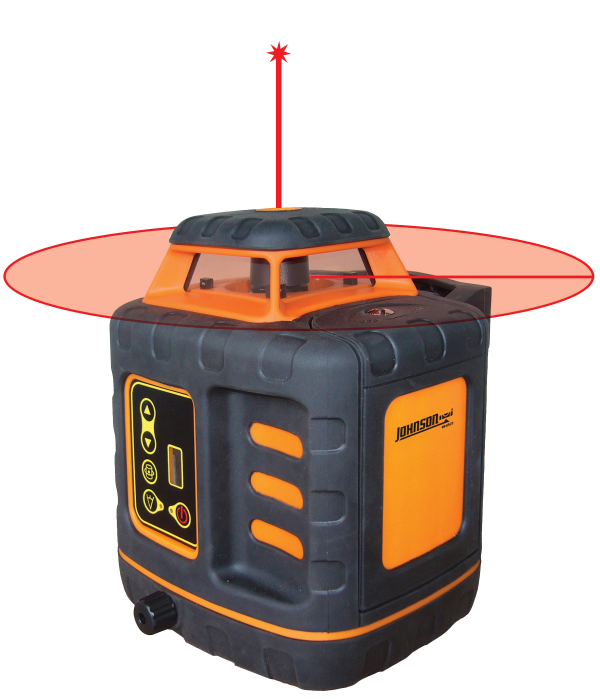

Self-Leveling Rotary Laser Kit

MODEL #:  40-6539

Johnson's 40-6539 rotary laser system is the perfect tool for indoor and outdoor leveling jobs. The rotary features horizontal self-leveling as well as manual leveling in the vertical plane, while its split beam establishes a 90° angle. The rotary also features two laser beam modes - dot and two adjustable line lengths - making it a versatile tool for any number of applications. Accuracy is never a problem thanks to the visual and audible alarms that alert you when the rotary is beyond its leveling range and the locking compensator that protects the inner pendulum during transport. With an included NiMH rechargeable battery pack, 6.4V battery charger, battery compartment, detector and clamp, remote control, tinted glasses and hard-shell carrying case, this rotary laser system comes equipped with everything you need to get up and running! When working in brightly lit conditions, consider Johnson's 40-6543 green beam rotary laser system featuring GreenBrite® technology.

40-6539 Kit+ Hover over main image to zoom
40-6539 Kit
40-6539
40-6539
40-6539
40-6539

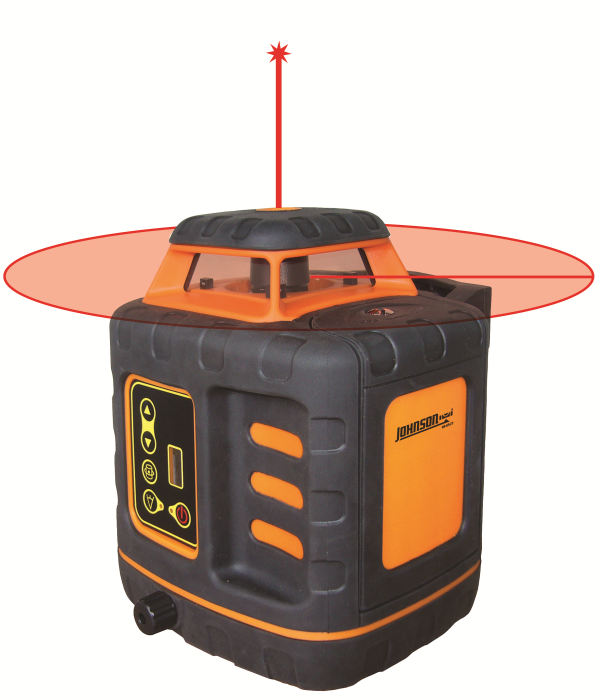

40-6539 Beam
  • Horizontal self-leveling

  • Scan mode projects laser chalk line

  • Split beam establishes a 90° angle

  • Manual-leveling in the vertical plane

  • Includes laser detector

40-6539 Includes > Laser, NiMH rechargeable battery pack, 6.4V battery charger, 4 "C" alkaline battery compartment (batteries not included), detector with clamp and 9V battery, remote control and 9V battery, tinted glasses, and hard-shell carrying case.

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

±3/16"/100'

Interior Range:

Up to 200 ft.

Self-Leveling Range:

±3.5°

Power Supply:

NiMH rechargeable battery pack and 6.V charger (included) or 4 "C" alkaline batteries (not included)

Battery Life:

15 hours continuous use with rechargeable battery pack; 20 hours with alkaline batteries

Dimensions:

7.08" x 6.37" x 7.95"

Weight:

4.40 LBS

Working Temperature:

14° F-113° F

Laser Beam Modes:

0°, 30°, 60°

Rotation Speeds:

150, 200, 250, 300 RPM

IP Protection Class:

66

Warranty:

3 Years

Ideal for indoor and outdoor jobs, this rotary laser system is a must-have for excavation, flatwork, interior layouts, drop ceilings, wainscoting, cabinet installation and more!

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
40-6539 - Instruction Manual - English
40-6539 - Instruction Manual - Spanish
40-6539 - Instruction Manual - French

Replacement 6.4V Battery Adapter
Replacement 6.4V Charger for 40-6529, 40-6532, 40-6534, 40-6535(V2 only), 40-6536(V2 only), 40-6539, 40-6541(V2 only), 40-6543, 40-6544, 40-6551, 40-6552, 40-6590, 99-028K, 40-6590I, 99-027K, 40-6526 and 40-6527 Model: 40-6838 $45.98
Replacement Alkaline Battery Compartment (no batteries) for 40-6527, 40-6532,99-027K, and 40-6539 Model: 40-6377 $5.88
Replacement Detector Clamp for 40-6700
Replacement Detector Clamp for 40-6700 Model: 40-2026 $56.66
Replacement Hard-Shell Carrying Case for 40-6539 Model: 40-6811 $123.64
Replacement NiMH Rechargeable Battery Pack for 40-6532, 40-6539, 40-6543 and 99-027K Model: 40-6373 $74.80
40-6735 main
Replacement Remote Control for 40-6532, 40-6543 and 40-6539 Model: 40-6735 $114.98


Product Details

Johnson's 40-6539 rotary laser system is the perfect tool for indoor and outdoor leveling jobs. The rotary features horizontal self-leveling as well as manual leveling in the vertical plane, while its split beam establishes a 90° angle. The rotary also features two laser beam modes - dot and two adjustable line lengths - making it a versatile tool for any number of applications. Accuracy is never a problem thanks to the visual and audible alarms that alert you when the rotary is beyond its leveling range and the locking compensator that protects the inner pendulum during transport. With an included NiMH rechargeable battery pack, 6.4V battery charger, battery compartment, detector and clamp, remote control, tinted glasses and hard-shell carrying case, this rotary laser system comes equipped with everything you need to get up and running! When working in brightly lit conditions, consider Johnson's 40-6543 green beam rotary laser system featuring GreenBrite® technology.



40-6539 Includes > Laser, NiMH rechargeable battery pack, 6.4V battery charger, 4 "C" alkaline battery compartment (batteries not included), detector with clamp and 9V battery, remote control and 9V battery, tinted glasses, and hard-shell carrying case.

Specifications

Leveling Method:

Self-Leveling (Pendulum)

Laser Wavelength:

635nm±10nm (Red)

Laser Classification:

Class IIIa

Maximum Power Output:

≤5mW

Accuracy:

±3/16"/100'

Interior Range:

Up to 200 ft.

Self-Leveling Range:

±3.5°

Power Supply:

NiMH rechargeable battery pack and 6.V charger (included) or 4 "C" alkaline batteries (not included)

Battery Life:

15 hours continuous use with rechargeable battery pack; 20 hours with alkaline batteries

Dimensions:

7.08" x 6.37" x 7.95"

Weight:

4.40 LBS

Working Temperature:

14° F-113° F

Laser Beam Modes:

0°, 30°, 60°

Rotation Speeds:

150, 200, 250, 300 RPM

IP Protection Class:

66

Warranty:

3 Years

Application

Ideal for indoor and outdoor jobs, this rotary laser system is a must-have for excavation, flatwork, interior layouts, drop ceilings, wainscoting, cabinet installation and more!

Support

Johnson Level Rapid Response Center for Repair and Service
Contact customer service at service@johnsonlevel.com or call 888-953-8357 from M-F 7am-5pm CT.
40-6539 - Instruction Manual - English
40-6539 - Instruction Manual - Spanish
40-6539 - Instruction Manual - French

Replacement Parts

Replacement 6.4V Battery Adapter
Replacement 6.4V Charger for 40-6529, 40-6532, 40-6534, 40-6535(V2 only), 40-6536(V2 only), 40-6539, 40-6541(V2 only), 40-6543, 40-6544, 40-6551, 40-6552, 40-6590, 99-028K, 40-6590I, 99-027K, 40-6526 and 40-6527 Model: 40-6838 $45.98
Replacement Alkaline Battery Compartment (no batteries) for 40-6527, 40-6532,99-027K, and 40-6539 Model: 40-6377 $5.88
Replacement Detector Clamp for 40-6700
Replacement Detector Clamp for 40-6700 Model: 40-2026 $56.66
Replacement Hard-Shell Carrying Case for 40-6539 Model: 40-6811 $123.64
Replacement NiMH Rechargeable Battery Pack for 40-6532, 40-6539, 40-6543 and 99-027K Model: 40-6373 $74.80
40-6735 main
Replacement Remote Control for 40-6532, 40-6543 and 40-6539 Model: 40-6735 $114.98
